Product Summary
The TLE4286GXT is a 5-V low-drop fixed voltage regulator in the very small SMD package PG-SCT-595-5. The maximum input voltage is 42 V. The output is able to drive a load of more than 10 mA while it regulates the output voltage within a 4% accuracy.
Parametrics
(1)Input Voltage: -0.3 to 45 V; (2)Input Current: -20 mA min; (3)Output Voltage: -0.3 to 16 V; (4)Output Current: -20 mA min; (5)Junction temperature: -40 to 150 ℃; (6)Storage temperature: -50 to 150 ℃
Features
Features: (1)15 mA output current capability; (2)1 μA current consumption in standby mode; (3)Low quiescent current consumption 60 μA in ON mode Inhibit input; (4)Very small SMD-Package PG-SCT-595-5; (5)Wide operation range: 6.2 V to 42 V; (6)Wide temperature range: -40 ℃ to 150 ℃; (7)Output protected against short circuit; (8)Overtemperature protection; (9)Green product (RoHS compliant); (10)AEC qualified.

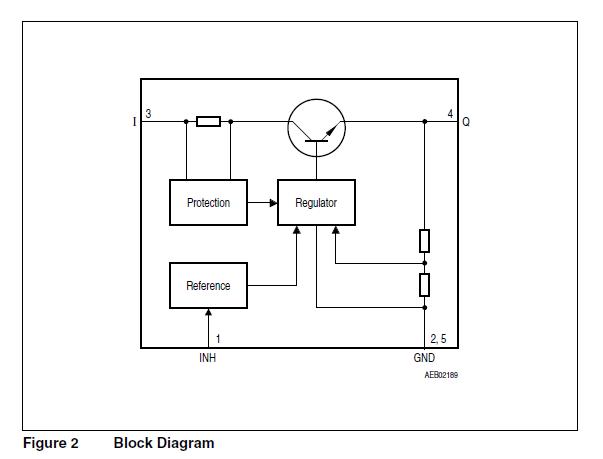

Diagrams
 |
