Product Summary

The PT6302G is a High-Performance 3 Amp, 12-Pin SIP (Single In-line Package) Integrated Switching Regulator (ISR) designed to meet the on-board power conversion needs of battery powered or other equipment requiring high efficiency and small size.

Parametrics

PT6302G absolute maximum ratings: (1)Shutdown Current: 100 μA at Vin = 15V; (2)Quiescent Current: 10 mA at Io = 0A, Vin =10V; (3)Absolute Maximum Operating Temperature Range: -40 to +85℃ at Over Vin range; (4)Thermal Resistance: 30℃/W at Free Air Convection (40-60LFM); (5)Storage Temperature: -40 to +125℃.

Features

PT6302G features: (1)90% Efficiency; (2)Adjustable Output Voltage; (3)Internal Short Circuit Protection; (4)Over-Temperature Protection; (5)On/Off Control (Ground Off); (6)Small SIP Footprint; (7)Wide Input Range.

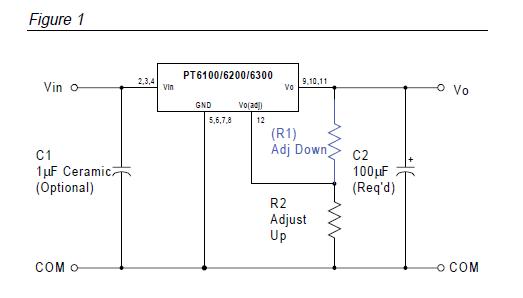

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PT6302G
PT6302G
Texas Instruments
DC/DC Converters 5Vout 3A Wide Input Adj Step-Down ISR
Data Sheet
0-1: $14.56
1-25: $12.61
25-100: $11.81
100-250: $11.03
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PT6300
PT6300
Other

Data Sheet
Negotiable
PT6301
PT6301
Other

Data Sheet
Negotiable
PT6302
PT6302
Other

Data Sheet
Negotiable
PT6302A
PT6302A
Texas Instruments
DC/DC Converters 5Vout 3A Wide Input Adj Step-Down ISR
Data Sheet
0-1: $15.25
1-25: $12.97
25-100: $12.05
100-250: $11.05
PT6302B
PT6302B
Texas Instruments
DC/DC Converters 5Vout 3A Wide Input Adj Step-Down ISR
Data Sheet
0-1: $13.39
1-25: $11.59
25-100: $10.86
100-250: $10.14
PT6302BT
PT6302BT
Texas Instruments
DC/DC Converters 5Vout 3A Wide Input Adj Step-Down ISR
Data Sheet
0-134: $11.93
134-250: $11.14
250-500: $10.58
